A-2011/A-2012 DIAMOND DRILL MACHINES

Type A-2011/A-2012 DIAMOND DRILL MACHINES

  • Including aluminum protection case.
  • The A-2011/A-2012 can be used with the S-1801, S-1802, S-1803X, S-1804 and S-1805 stands.



Technical data
Power output kW (hp) : 2.0 ( 2.7)
Voltage V : 230

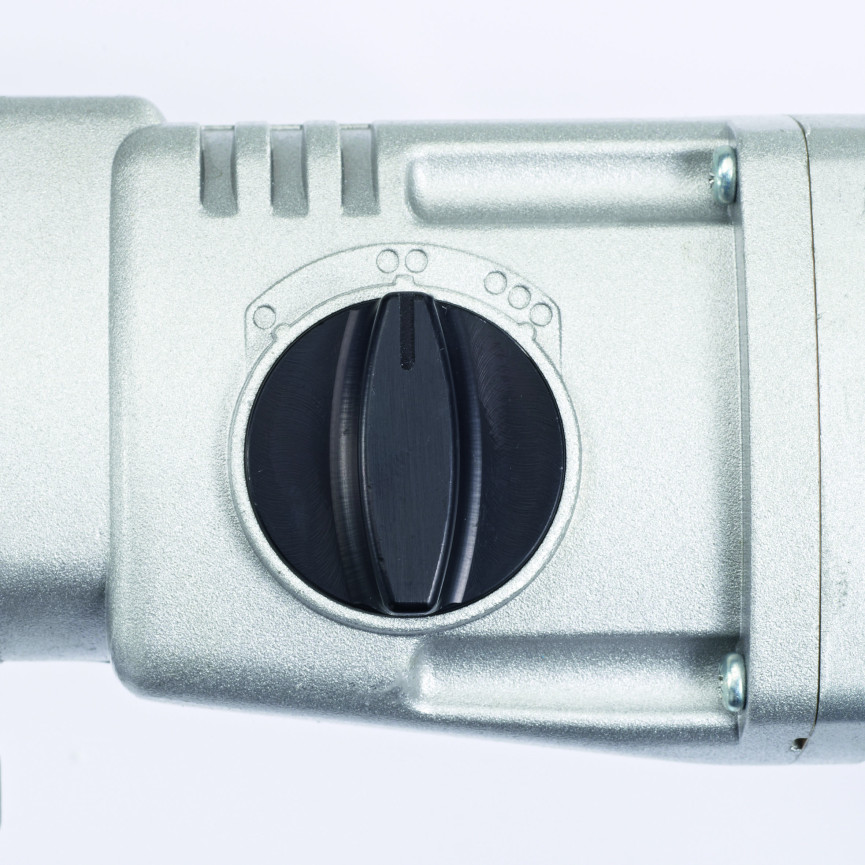

Speeds : 3
RPM under load:
1st speed
2nd speed
3rd speed
: 450 RPM
: 1.050 RPM
: 2.00 RPM
Drill range hand-held:
in concrete
in brick
: Ø 70 mm
: Ø 162 mm
Drill range from stand:
in concrete
in brick
: Ø 160 mm
: Ø 160 mm

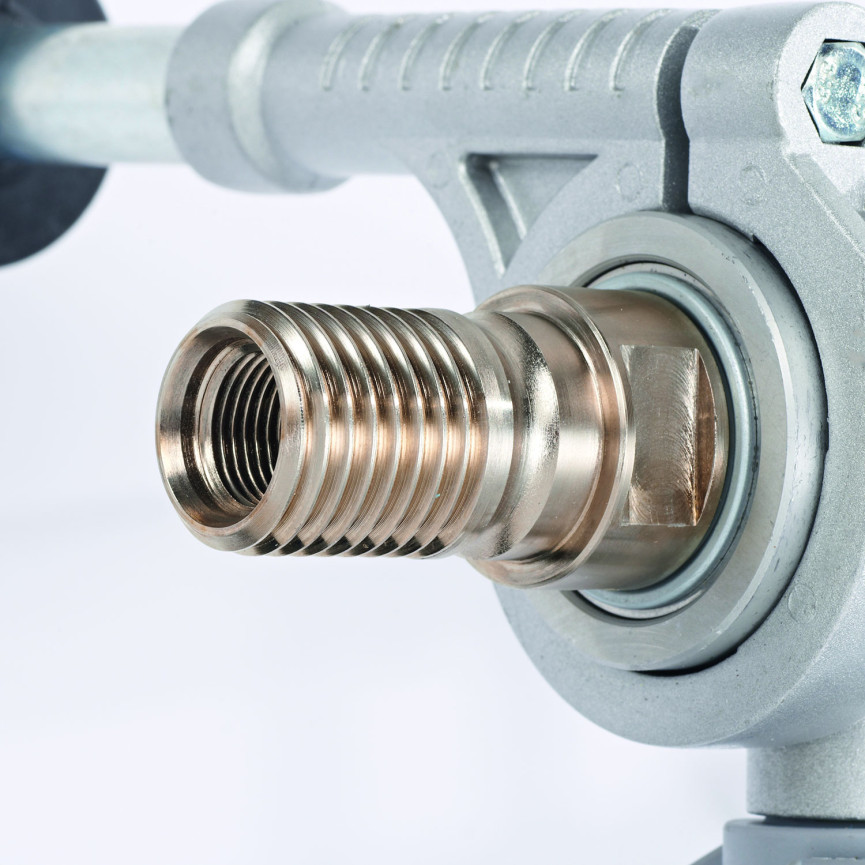

Machine connection : 1/2''G + 5/4''UNC
Weight kg 6.7



  A-2011 A-2012

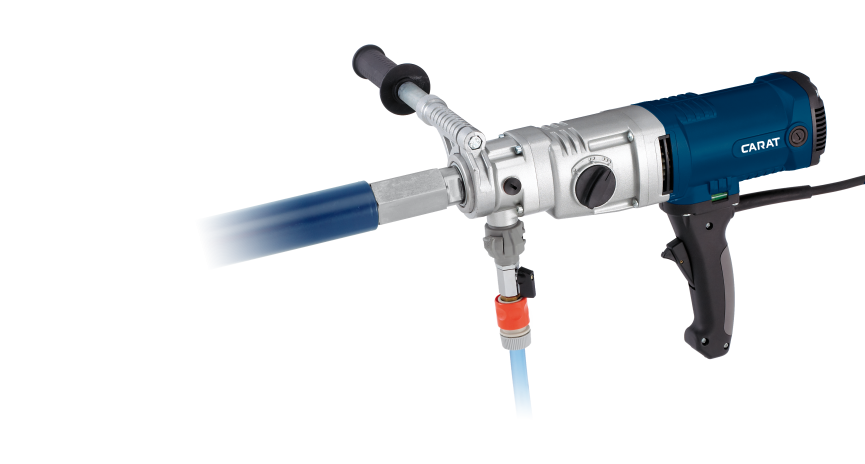

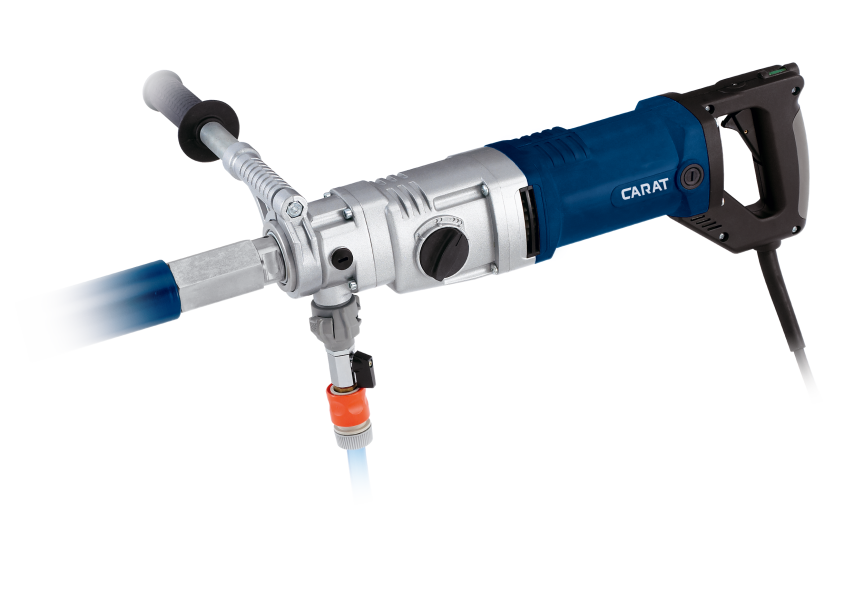

Handle Back handle Pistol handle
Article code AMB201100I AMB201200I
