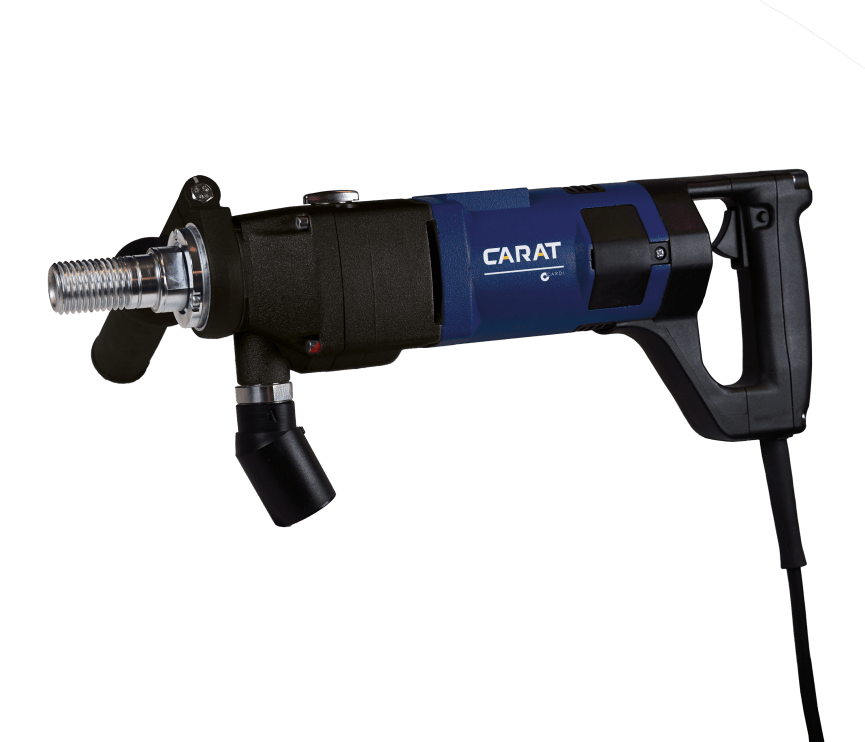

A-2021 HAND-HELD DRILL MACHINE

• Suitable for dry drilling in concrete and brick with DRY CONCRETE drills.
• With switchable micro knock function of 28,800 rpm that the drilling in the hardest materials accelerates and ensures proper drainage of its drill cuttings.
• Overload protection and slip clutch.
• For air conditioning installers to drill dry in concrete freehand up to Ø 82 mm.
• The A-2225 must always be used in combination with a vacuum cleaner.
• Including transport case.

Technical data
Power kW (hp) 2,0 (2,7)
Voltage V 230
Gears 1
Revs under load, rpm 1.400
Drilling range, hand-held:
in concrete mm 82
in brick mm 132
Drilling range, from stand:
in concrete mm 132
in brick mm 162
Machine connection 5/4”UNC U
Weight kg 5,6
Article code AMB2021000

Manual

Spare part drawing
