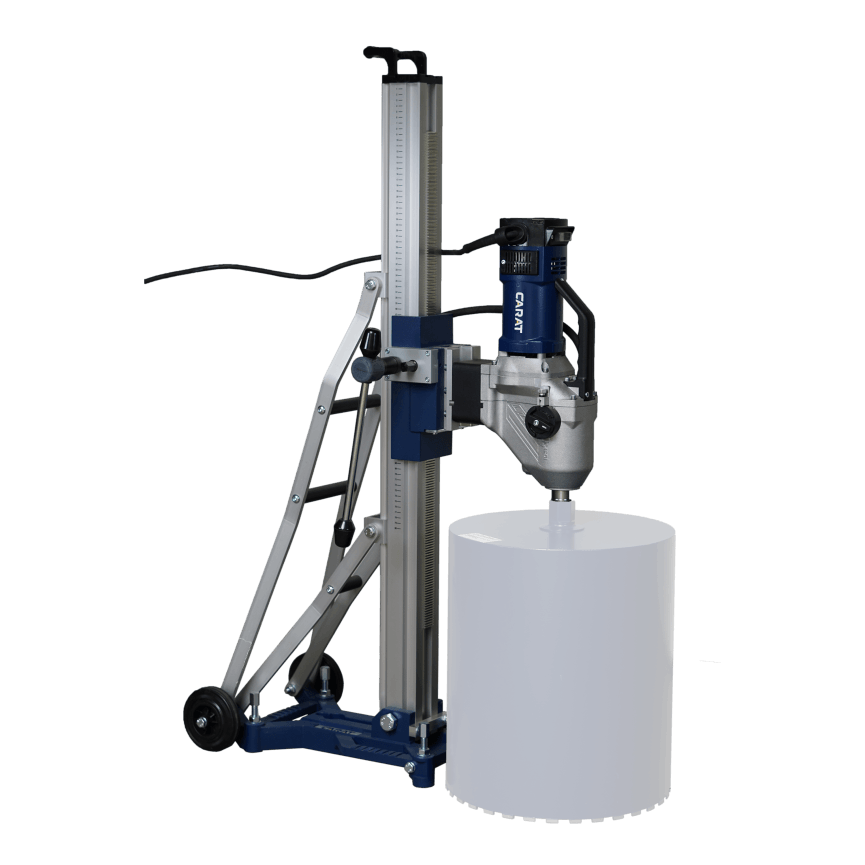

Drilling motor A-3500 + stand S-3000
• Suitable for water-cooled drilling in reinforced concrete.
• PRCD switch.
• Aluminium tripod with telescopic rear strut for optimum stability.
• Foot plate suitable for use with quick-release or outrigger post.
• Gear box on stand for increased control when drilling large diameters.
• Continuously adjustable.
• Tripod and machine also available separately.
| Technical data | AS-3520 |
| Power kW (hp) | 3.5 (4.8) |
| Voltage V | 230 |
| Speed under load | |
| 1st gear rpm | 300 |
| 2nd gear rpm | 560 |
| 3rd gear rpm | 920 |
| 4th gear rpm | 1540 |
| Drill range from stand in concrete mm | 420 (With optinional filling block) |
| Machine connection | 5/4’’ UNC |
| Weight kg | 40 |
| Article code | ASB3520000 |
Accessories
| Description | Article code |
| Distance block for A-3400 to Ø 420 mm | BSVB340110 |
| Drilling motor A-3500 | AMB3500000 |
