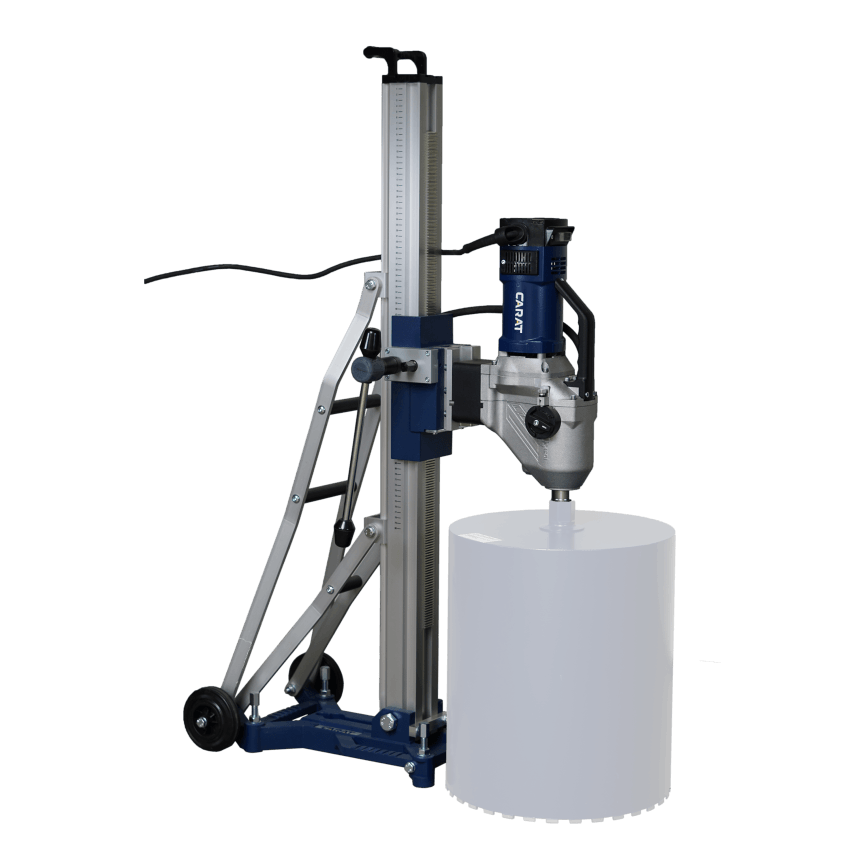

• Suitable for water-cooled drilling in reinforced concrete.
• Loss current protection : PRCD switch.
• Aluminium tripod with telescopic rear strut for optimum stability.
• Foot plate suitable for use with quick-release or outrigger post.
• Gear box on stand for increased control when drilling large
diameters.
• Continuously adjustable.
• Tripod and machine also available separately.
Speed under load:
1st gear rpm: 300
2nd gear rpm: 560
3rd gear rpm: 920
4th gear rpm: 1540
| Technical data | |
| Power kW (hp) | 3.5 (4.8) |
| Voltage V | 230 |
| Drill range from stand in concrete mm | 300 (without filling block) |
| Drill range from stand in concrete mm | 420 (With optinional filling block BSVB340060) 500 (With optinional filling block BSVB340110) |
| Machine connection | 5/4’’ UNC |
| Weight kg | 40 |
| Article code | ASB3520000 |
| Accessories | Article code |
| Distance block for A-3400 to Ø420mm | BSVB340060 |
| Distance block for A-3400 to Ø500mm | BSVB340110 |
