Type Bridge saw machine

  • Suitable for cutting all tiles, natural stone, concrete slabs and clinckers.

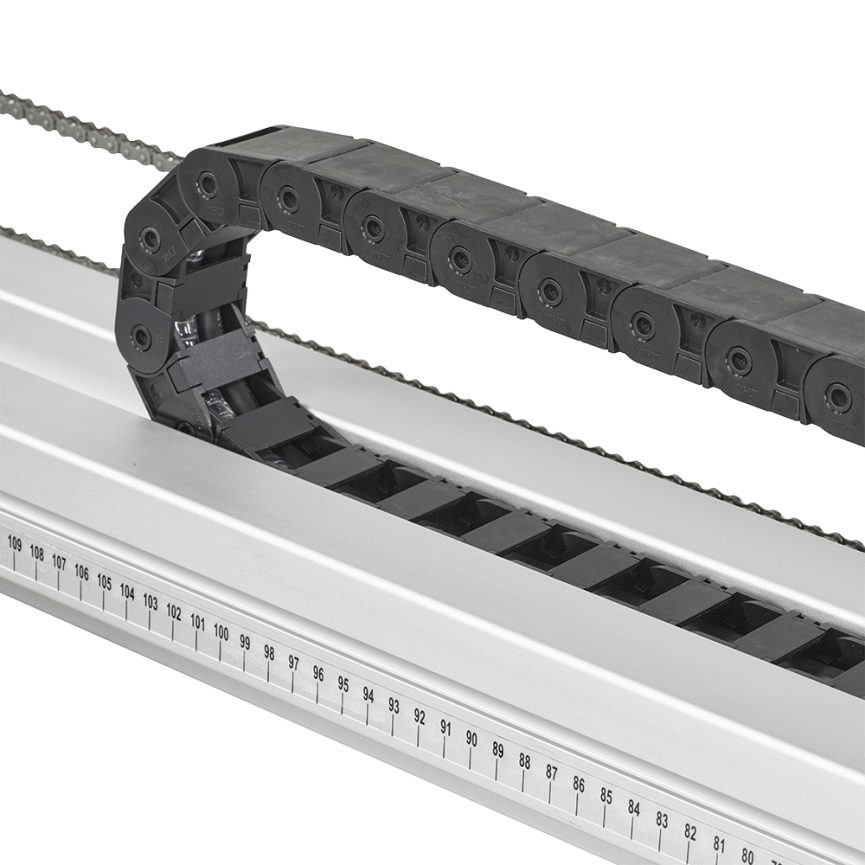

  • Machine for high precision cutting due to the rails with bearings.
  • Removable water tray for easy cleaning.
  • With aluminum base, foldable legs, chain drive with robust handwheel, and switchable water pump.
  • Miter cutting to 45°.
  • Including laser, transport wheels, side table and adjustable material guide.


Power kW (pk) 230V 2.2 (3.0)
Power kW (pk) 400V 2.2 (3.0)
Ø saw blade mm 350 x 25.40
Max. material thinkness cm 11
Weight kg 104
Net cutting length cm 100
Max. cutting length cm 120
Max. tile diagonal cm 70 x 70
Transport dimensions cm 177x75x78
Article code 230V GP3510L000
Article code 400V GP3510LK00


Accessories Article code
Side table GPT0000000
Roller table GPR0000000
Material guide GPA0000000
Tile clamp GPK0000000
Transport wheels GWS0000000
